Aprilia Tuono 1100 Front Turn Signals Instructions

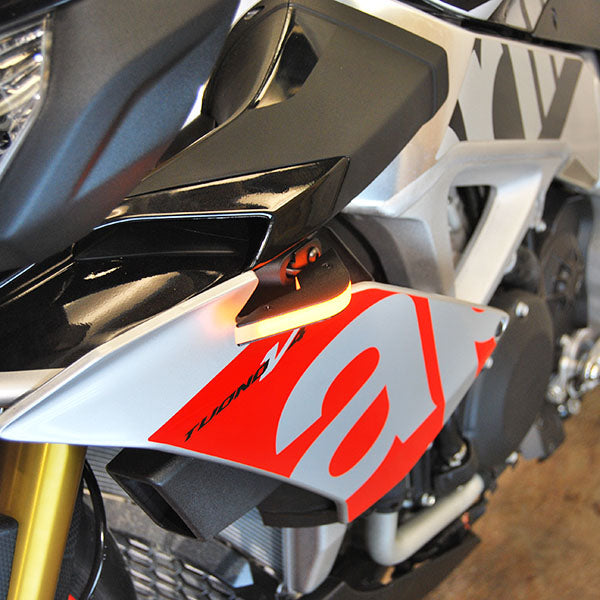

1) Remove (1) 4mm allen bolt. Repeat on both sides. (Picture 1)
2) Remove screw on stock blinker, and slide out harness. There are 2 spade connectors that come out. Repeat on both sides.

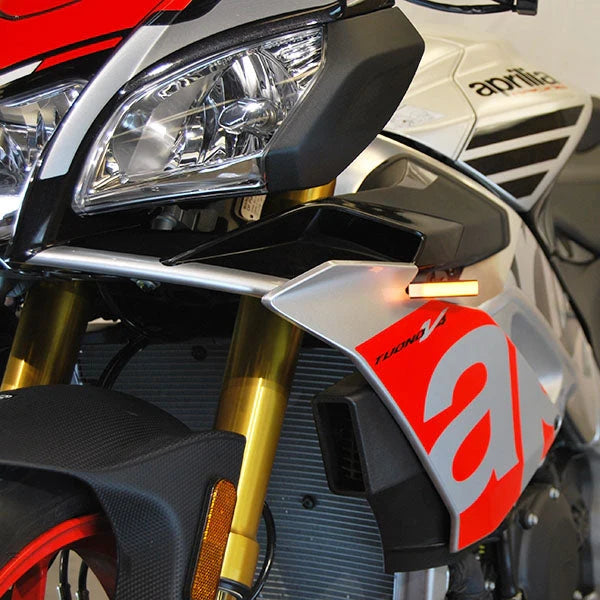

3) Take NRC blinker and unscrew lower plate. (Picture 2)

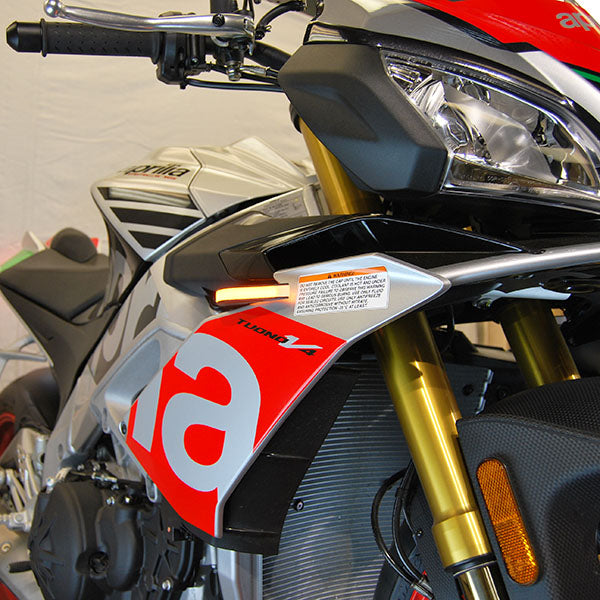

4) Mount lower bracket to bike with stock bolt. Repeat on both sides. (Picture 3)

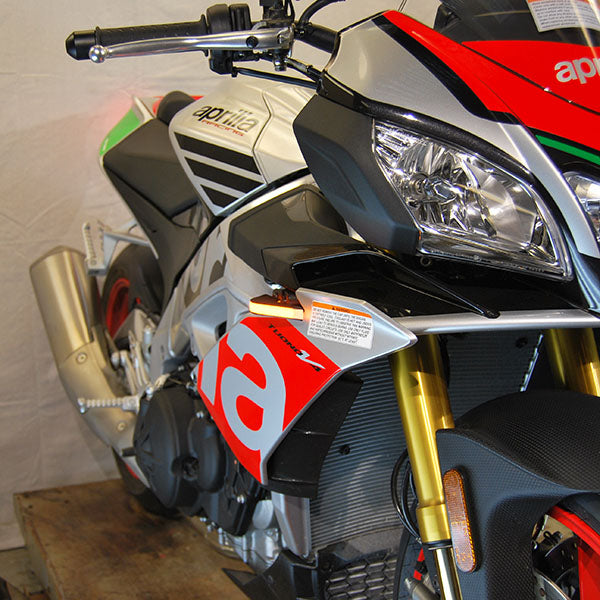

5) Take top section of NRC blinker, and plug into wires on bike. Dark blue wires are ground on this bike. Test signal before screwing everything back together. Slide shrink tubing over connectors and seal. Repeat on both sides. (Picture 4)
6) Take screws removed from lens and mount top section of blinker to lower.
7) Zip tie wires behind fairing if necessary.
Shop The Part
New Rage Cycles
Aprilia Tuono 1100 V4 Front Turn Signals (2015 - 2019)
Aprilia Tuono 1100 V4 front LED turn signals from New Rage Cycles is a custom design helping you save time and money on installation, and lets you plug right in and ride on!
Turn signal lenses are CNC machined from polycarbonate and turn signal brackets are black texture powder coated aluminum. We use extremely bright 1mm LEDs, giving you exceptionally bright LED turn signals... Day or Night!
(2015 - 2019)
