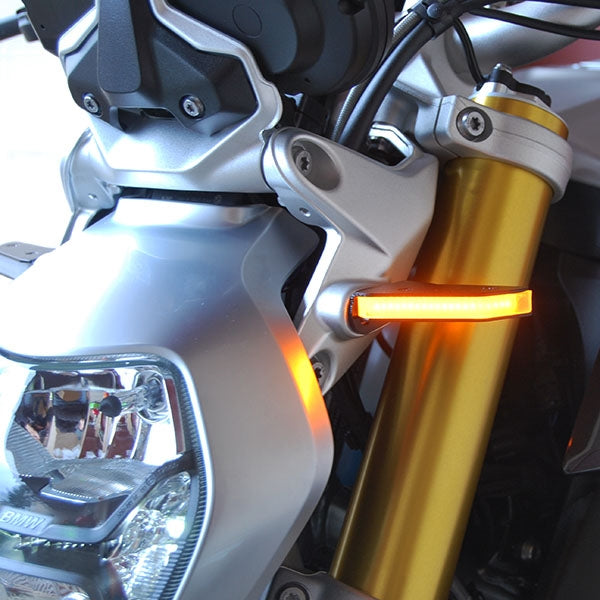

BMW R1200R/RS Front Turn Signals Instructions

BMW R1200R/RS Front Turn Signals Instructions

1) Remove screw on stock signals and pop off lens (picture 1)

2) Slide out housing and disconnect both spade connectors (picture 2)

3) Remove stock signal housing by unbolting (1) bolt (picture 3)

4) Unscrew top plate from new turn signals and with stock bolt, re-use to install top plate (picture 4)

5) Slide wires through hole and screw lens onto top plate (picture 5)

6) Slide provided shrink tubing over connectors and plug spade connectors together
• Brown wire to Black NRC wire
• Blue wire to Red NRC wire

7) Test your turn signals BEFORE you seal the shrink tubing

8) Zip tie wires if necessary
