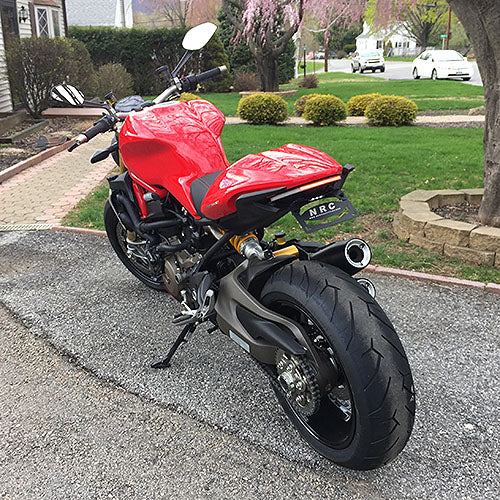

Ducati Monster 1200 'Stealth' Fender Eliminator Kit (2014-2016) Instructions

Ducati Monster 1200 'Stealth' Fender Eliminator Kit (2014-2016) Instructions

1. Remove 4 allen bolts that hold the stock turn signals and plate holder onto bike (tool needed 5mm allen key)
2. Remove 4 allen bolts from the remove tail section (tool 3mm allen key)
3. Unplug turn signal connectors and license plate light connectors. (the image shown for the plate light is for 821 if you have 1200 you have a white connector in the hugger that you remove, plug light will plug into that)
4. Remove grab handle bolts and grab handles (right slide and left) tool needed 21mm socket and rachet
5. Remove tail light and disconnect the 3 wire connector for it (tool needed T20 torx driver)

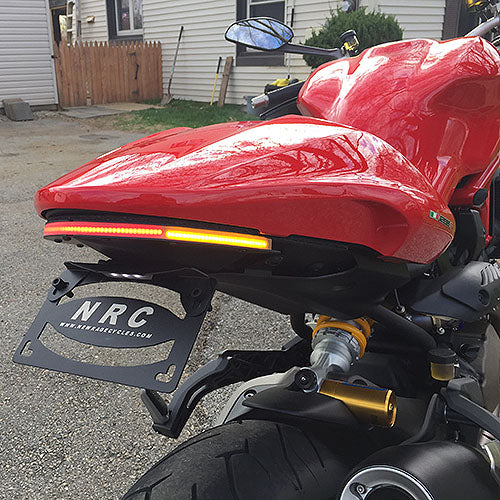

6. Install NRC tag holder with light and silver T tab onto FE bracket using hardware provided (tools needed 4mm allen key and 10mm socket and ratchet)
7. Plug in your new tail light and turn signals to the bike (YOU MUST COVER EXPOSED TERMINALS WITH BLACK ELECTRICAL TAPE, SEE ARROW IN PLATE LIGHT IMAGE)
8. Install without grab handles and the bolt position use provided hardware (tool needed 5mm allen key). Install with grab handles and bolt position 3 bolts and 2 spacers are provided 2 are stock bolts you removed earlier (tools needed 5mm allen key and 21mm socket and rachet)
9. The silver T tab that you installed earlier will line up with the rubber grommet that your stock tail light came out of. Insert provided hardware as shown and tighten until gommet is collapsed (tools needed 8mm wrench and a 4mm allen key)
