Ducati Monster 1200R Fender Eliminator Instructions
1) Loosen stock tail section by first unbolting two 4mm bolts underneath stock tail light (picture 1)
2) Remove four bolts underneath seat; two each side and lower plastic belly shield (picture 2)
3) Cut zip ties and free stock connectors, disconnecting three plugs (picture 3)
4) Remove four shoulder bolts underneath passenger seat and lower fender. You will be reusing two of these bolts (picture 4)
5) Reinstall the two shoulder bolts in rear holes (picture 5)

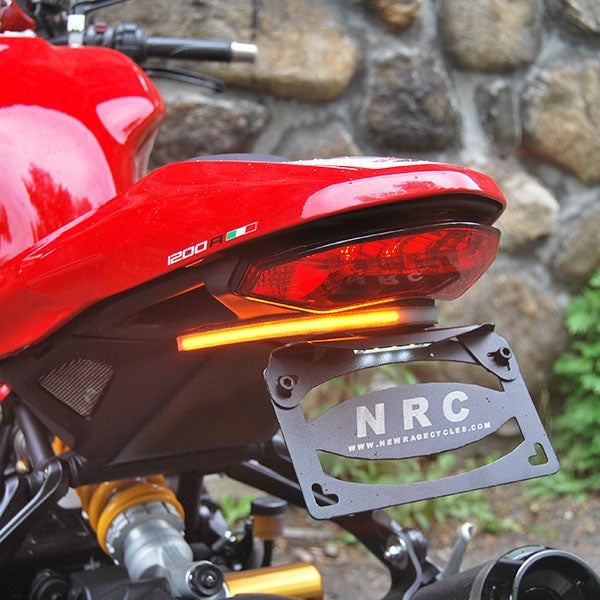

If installing fender eliminator with the ‘Standard’ plate mount, bolt on NRC license plate bracket to turn signal plate with M6 bolts and tooth washers (picture 6)
6) Route connectors underneath seat and reinstall plastic belly shield using stock hardware, leaving every bolt loose so you can plug new kit on (picture 7)
7) To mount kit on bike, use M5 bolts and bolt on through turn signal plate, supplied spacers, belly shield, and into bike (picture 8)
8) Plug in connectors back into stock harness
9) Put seat back on bike and ride safe

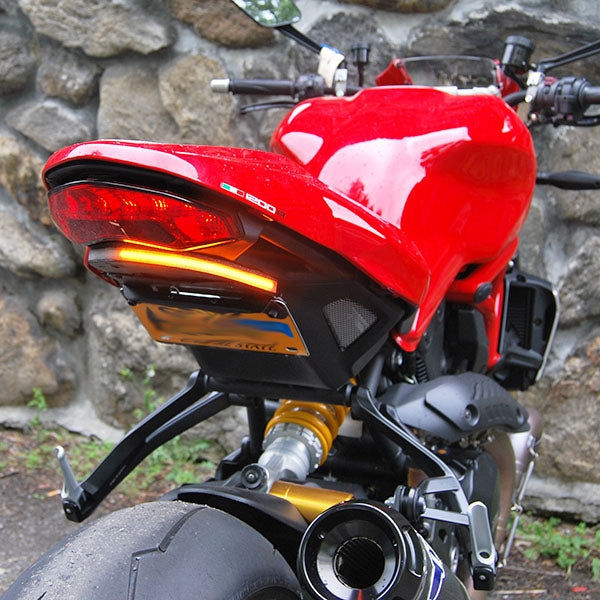

If installing fender eliminator with ‘Tucked’ plate mount, take your license plate, tucked mount, and bolt onto backside of new turn signal bracket. Follow steps 6-9 above to complete installation
Shop The Part
New Rage Cycles
Ducati Monster 1200 R Fender Eliminator Kit (2016 - Present)

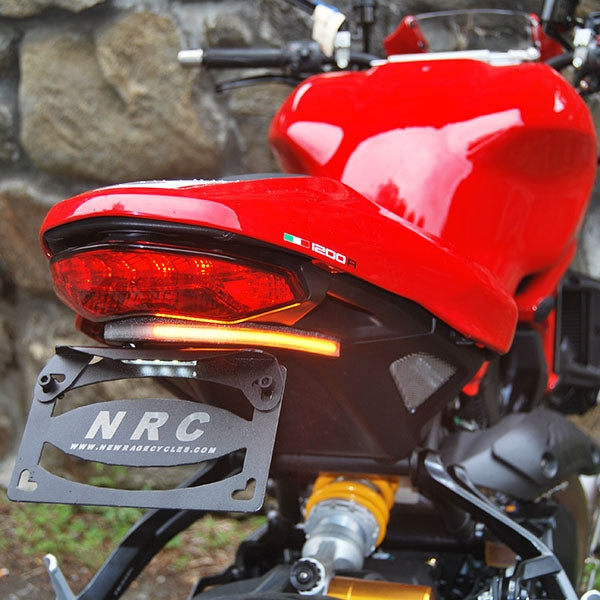

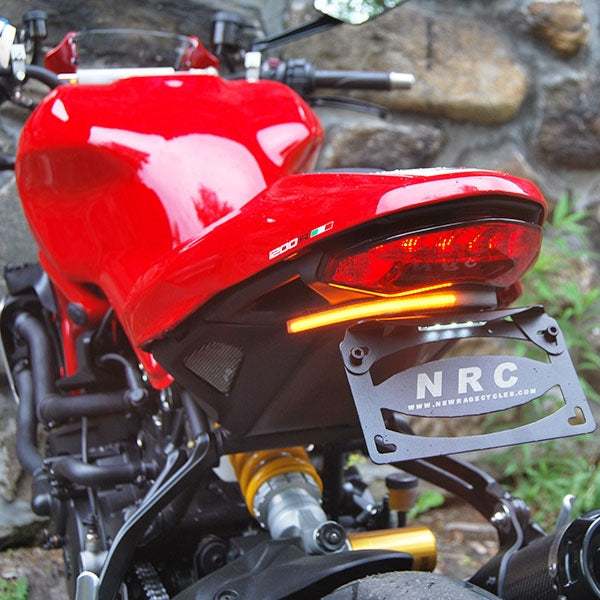

New Rage Cycles now offers a PLUG & PLAY fender eliminator kit for Ducati's new Monster 1200 R! This kit cleans up the rear end of your Monster 1200 R with the brightest turn signals on the market. Our flush mounted license plate bracket is constructed from aluminum and black powder coated, providing a very clean finish, as well as giving you extremely bright LED turn signals. No other fender eliminator kit exists on the market today!

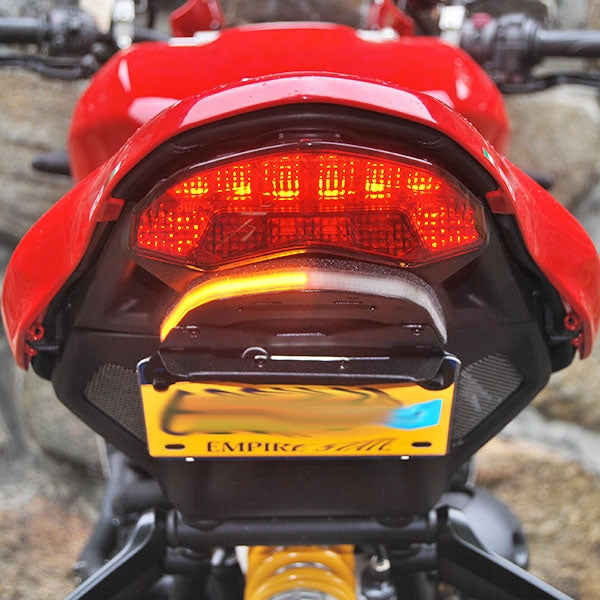

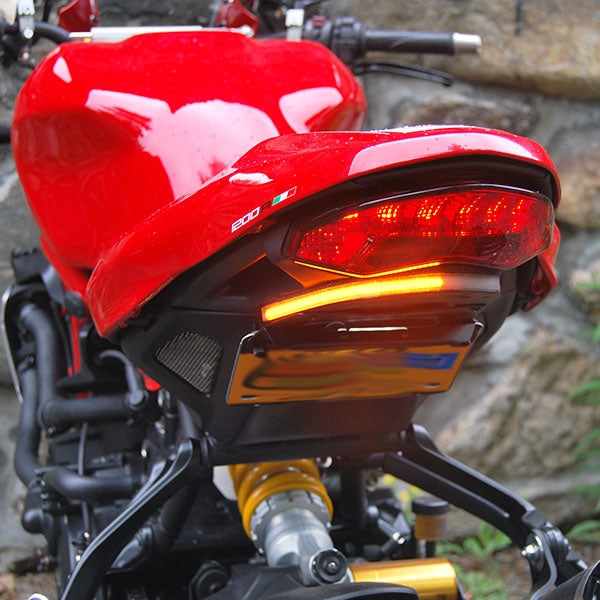

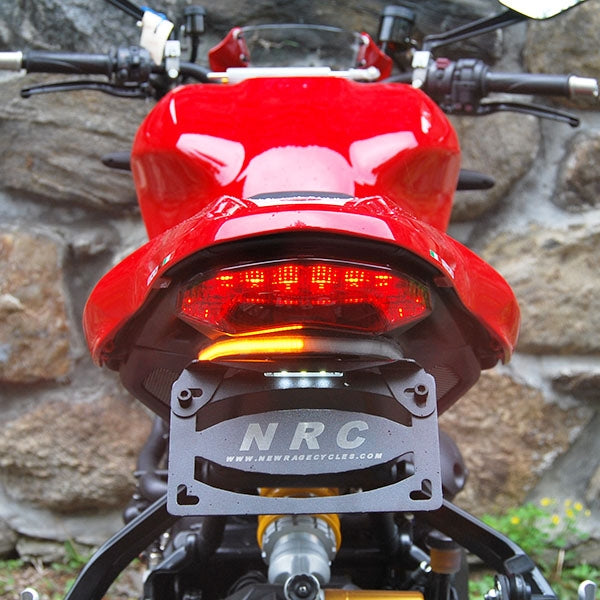

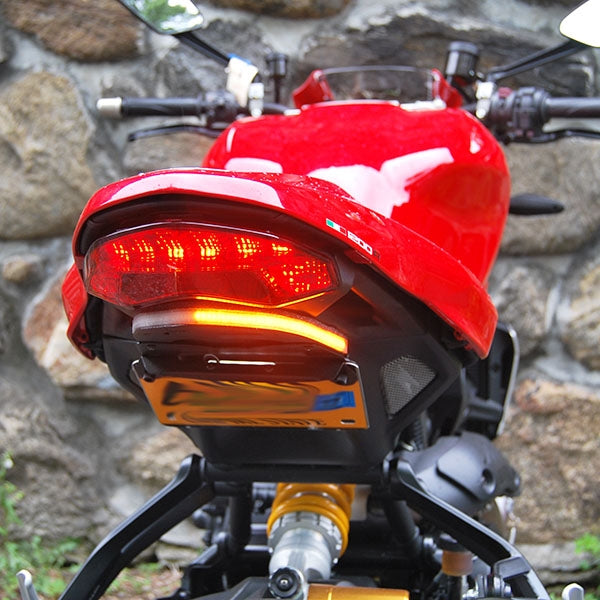

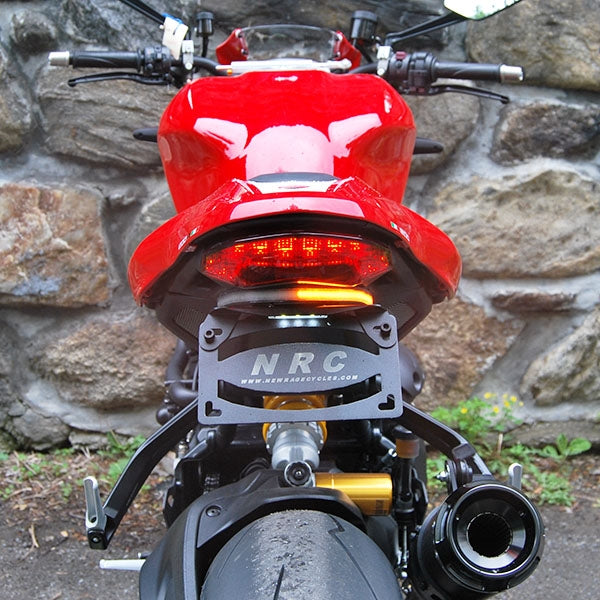

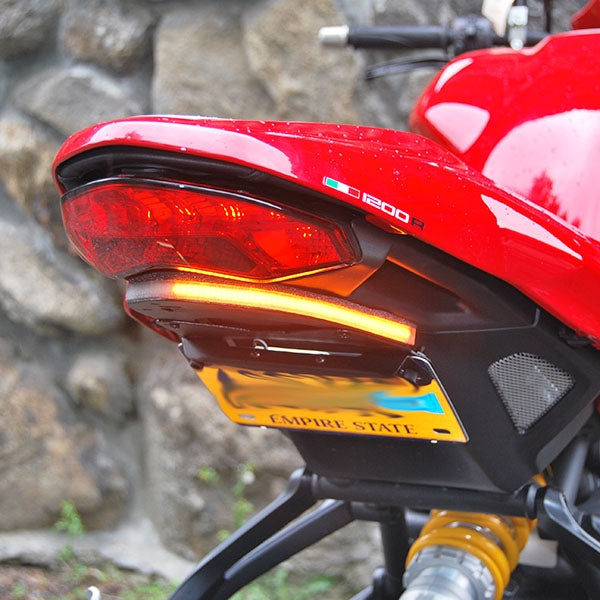

Our kit offers you a 'Standard' or 'Tucked' license plate location!
Our plug & play kit saves you time and money on installation, and lets you plug right in and ride on!
Turn signal lenses are CNC machined from polycarbonate and our turn signal bracket is machined from billet aluminum. Our kit also comes with an LED license plate light providing you with everything you need for a very clean fender eliminator kit.
(2016 - Present)
