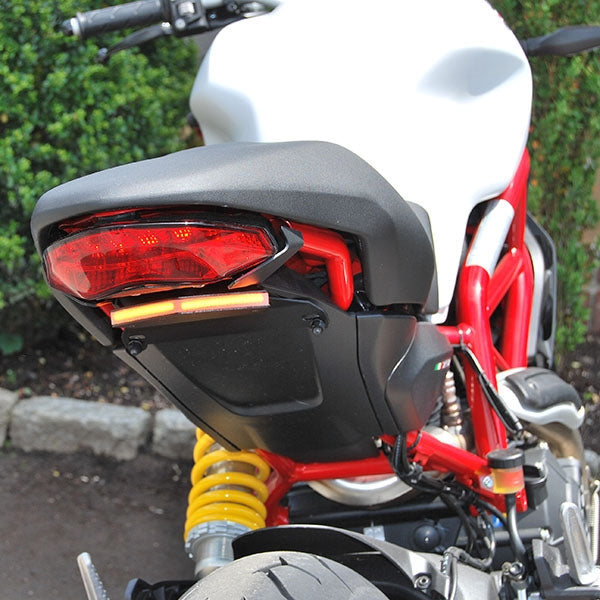

Ducati Monster 797/1200/Anniversario Fender Eliminator (2017 - Present) Instructions

Ducati Monster 797/1200/Anniversario Fender Eliminator (2017 - Present) Installation Instructions

1) Remove seat

2) Unscrew all bolts under stock fender / stalk using 4mm allen key (picture 1)

3) Unplug (3) OEM connectors

4) Remove (4) bolts underneath to remove fender (picture 2)

5) With (4) M8 bolts, spacers, and push nuts, mount tail plate to bike. Slide (4) bolts through tail plate; slide white spacers over; and push nuts on top of spacers to secure in place. The belly pan should be sandwiched between the bike and the lens bracket. You have (2) 35mm bolts and (2) 30mm bolts. See picture for proper bolt placement (picture 3)
• 797 has (4) 1/2 x 5/16 spacers
• 1200 has (2) 7/8 | (2) 5/8 spacers

6) Plug connectors into OEM harness

7) Mount your license plate to the tabs on belly pan

8) Put seat back on bike
