Ducati XDiavel Rear Turn Signals (Backrest Compatible) Instructions
XDiavel

Ducati XDiavel Rear Turn Signals (Backrest Compatible) Instructions

1) Remove seat from bike

2) Remove rear bolt on tank with 8mm socket (picture 1)

3) Prop tank up

4) Locate 4 pin white connector and unplug (picture 2)

5) Take new wire harness provided, and plug into stock connectors (picture 3)

6) Feed 2 pig tailed wires under seat bracket and underneath passenger seat

7) Take back rest, and disassemble reflector by removing bolts (pictures 4/5)

8) Take NRC turn signals, and mount to back rest with bolts provided M5 bolts/M5 nuts (picture 6/7)

9) Plug connectors from turn signals into provided wiring harness

10) Tighten bolt on tank

11) Zip tie harness if necessary

12) Put backrest and seat back on bike with stock hardware

Shop The Part

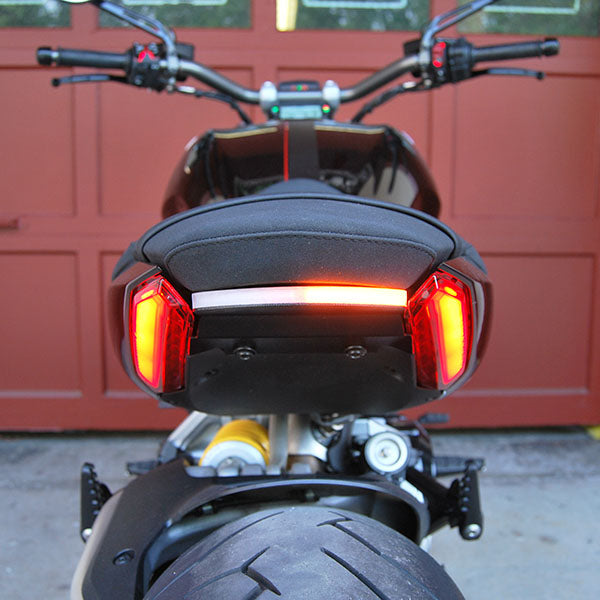

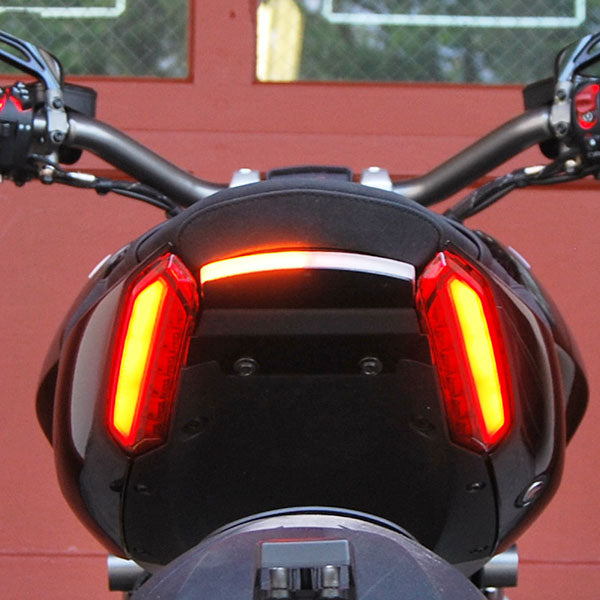

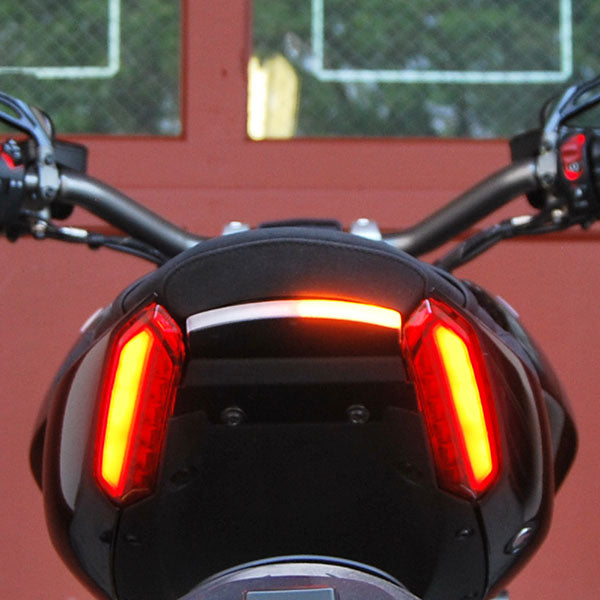

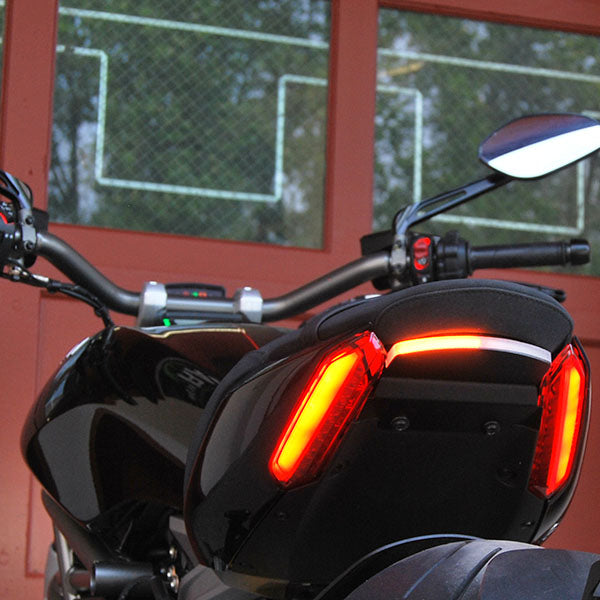

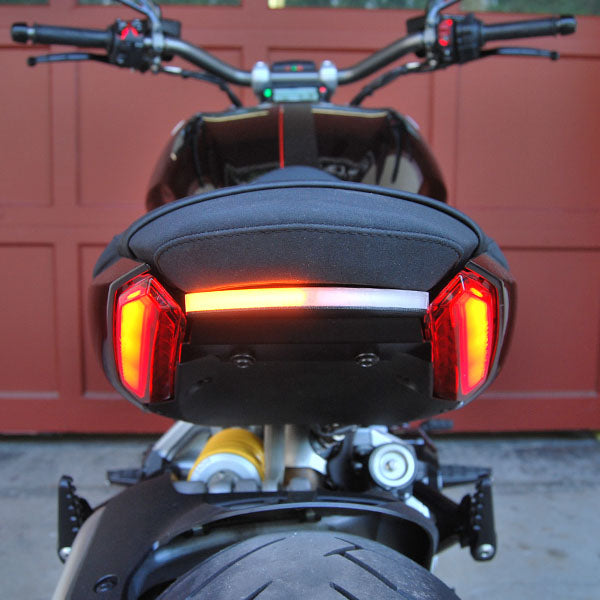

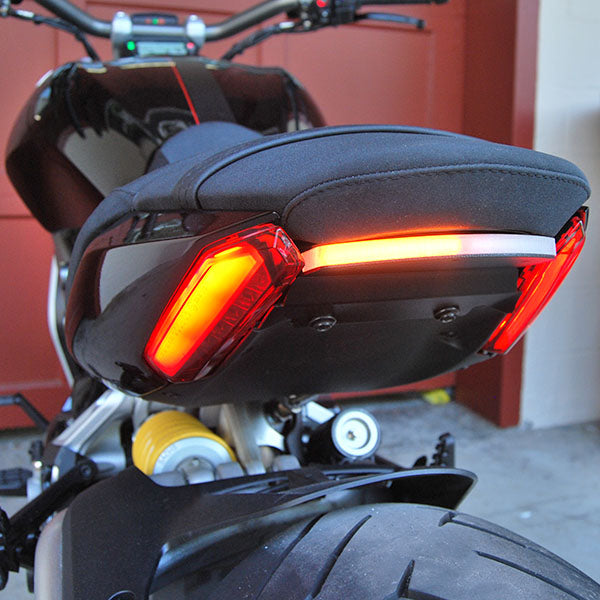

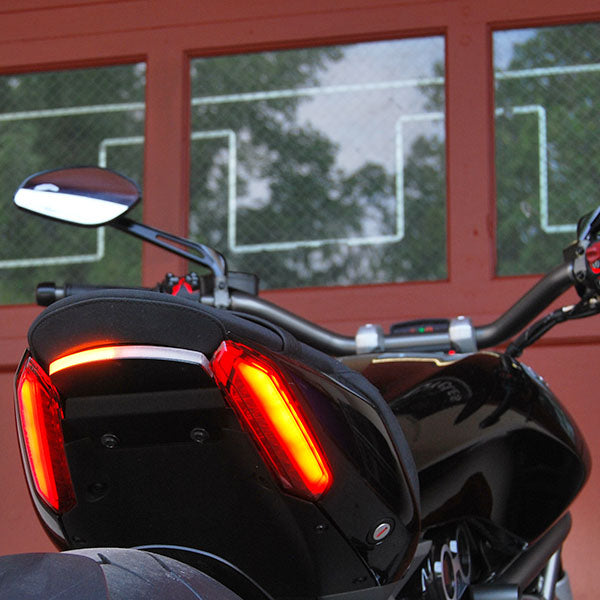

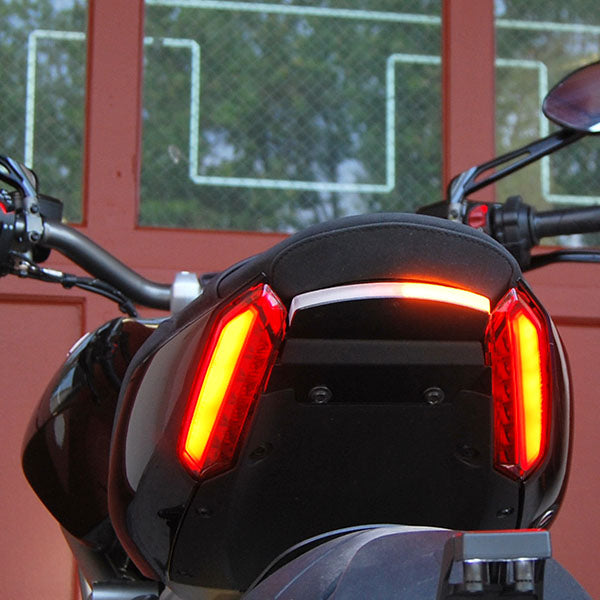

Ducati XDiavel Rear Turn Signals
Ducati XDiavel Rear Turn Signals (2016 - Present)
Ducati XDiavel Rear Turn Signals (2016 - Present)
Ducati XDiavel Rear Turn Signals (2016 - Present)
Ducati XDiavel Rear Turn Signals (2016 - Present)
Ducati XDiavel Rear Turn Signals (2016 - Present)
Ducati XDiavel Rear Turn Signals (2016 - Present)
Ducati XDiavel Rear Turn Signals (2016 - Present)
Ducati XDiavel Rear Turn Signals (2016 - Present)

New Rage Cycles

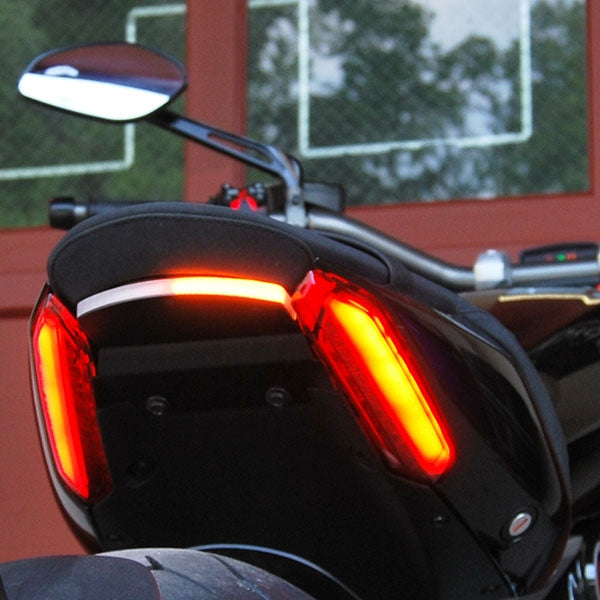

Ducati XDiavel Rear Turn Signals (2016 - Present)

$135.00
SKU: XD-RTS
License Plate Location:Standard
Quantity:

NRC offers a Plug & Play rear signal setup for your XDiavel that allows you to move the signals from down below and tuck it underneath the seat. These turn signals will replace the stock signals, and offer you a sleak, yet substantially bright replacement.

Kit comes with the following:

- New harness to move connectors underneath seat, and still allow you to keep your plate light down below
- LED turn signals

Spend less time installing, and more time riding with our complete line of plug and play accessories.
