Ducati XDiavel Side Mount License Plate (2 Position) Instructions
Ducati XDiavel Side Mount License Plate (2 Position) Installation Instructions
1) Remove license plate from hugger
2) Unplug stock connectors
3) Remove three 6mm allen bolts from hugger and remove turn signals (picture 1)
4) Take off hugger bracket by removing 3 stock bolts (picture 2)
5) Disconnect 3 pin connector on inside of hugger (picture 3)
6) Remove 7 bolts from inside of hugger to take out harness (picture 4)
7) Take connector removed and plug back into stock harness (picture 5)
8) Using 3 stock bolts, slide through side mount plate and through provided plastic spacer (picture 6)
9) Install side mount bracket onto bike
10) Plug plate light connector into stock harness (picture 7)
11) Loosen bolts on hugger to tuck wires underneath cover – zip tie accordingly (picture 8)
12) Put license plate onto NRC bracket
Shop The Part
New Rage Cycles
Ducati XDiavel Side Mount License Plate (2 Position) (2016 - Present)

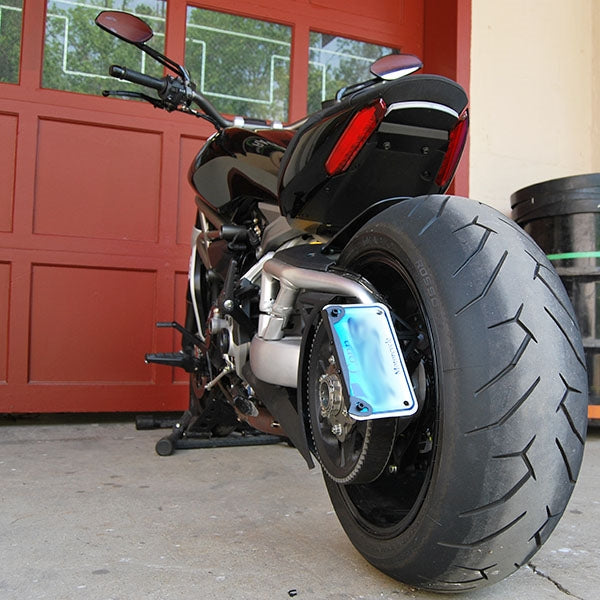

Custom designed 2 position side mount license plate for the Ducati XDiavel. This kit eliminates the stock license plate fender, yet using the same mounting location allows you to ride with your license plate mounted horizontally OR vertically!
Kit comes with a license plate light.
(2016 - Present)
**Check local and state laws before riding with it mounted in a vertical position**
