Harley Davidson Street 500 Fender Eliminator Kit (2014-Present) Instructions
Harley Davidson Street 500 Fender Eliminator Kit (2014-Present) Instructions
1.)If installing inner fender, trim excess plastic from inner fender assy and install using inly top bolt will need a longer bolt s lock nut for this 1/4 20 x 3/4 with locknut some adjustment of the rear bracket will be necessary for proper alignment of the tail light with the fender.
2.) Remove seat
3.)Remove 4 bolts (A)
4.) (B) 1 Brackets (C)
5.) Remove outer fender (D)
6.) Disconnect wiring harness to tail light assy
7.) Remove 3 screens (E) holding inner fender ass yin place.
8.)Remove inner fender assy(F)
9.) Remove and reuse clip nuts (G) on new tail light assy
Shop The Part
New Rage Cycles
Harley Davidson Street 500 Fender Eliminator Kit (2014 - Present)

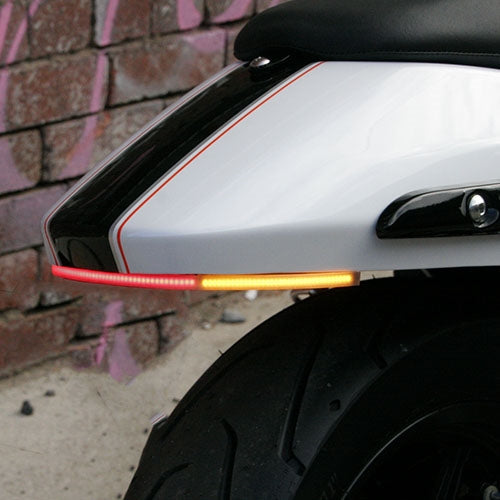

Harley Davidson Street 500's first fender eliminator to hit the market! Don't miss out on an incredible 'stealth' wrap around tail light with the brightest LEDs in the market today. Our fender eliminator provides you with extremely bright LED turn signals, an LED brake light, and LED license plate light for a complete fender eliminator solution.
Our fender eliminator kits are all constructed from aluminum and black powder coated for a very clean finish, as well as CNC machined polycarbonate to mask our LEDs, avoiding the usual 'hot spot' as in most other kits.
Add a Dual-Load equalizer to your order to stabilize the flash rate (optional).
