Harley Davidson Street Rod Tail Light / License Plate Instructions
1) Remove seat and bolts using a 10mm socket. (Picture 1)
2) Unplug stock connectors. (Picture 2)
3) Remove (4) hex bolts with a 12mm socket and slide off stock tail section. (Picture 3)
4) Remove cap and place back onto stock plug. (Picture 4)
5) Install NRC tail light using the 2 stock hex bolts and supplied nuts on the lower holes, and the supplied M8x35 bolts and nuts on the upper holes. You will be mounting the plate light bracket on the left side top hole with the same supplied hardware. (Picture 5/6)
6) Under the seat will be the stock flasher. Unplug and plug in new LED flasher. Also plug in rest of connectors and test.
Shop The Part
New Rage Cycles

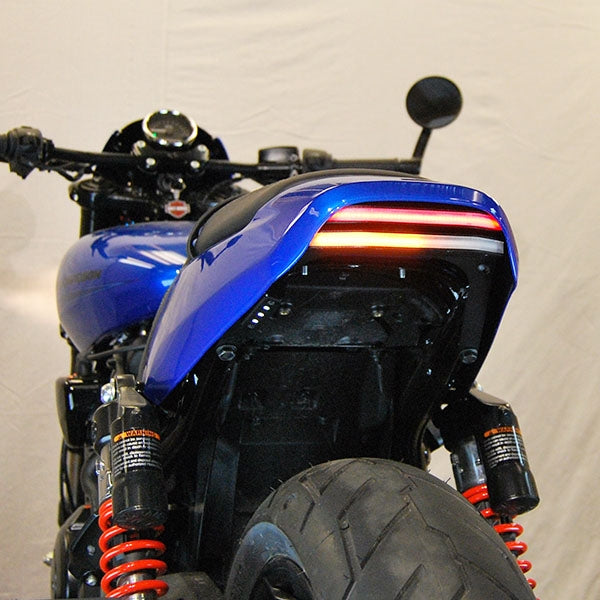

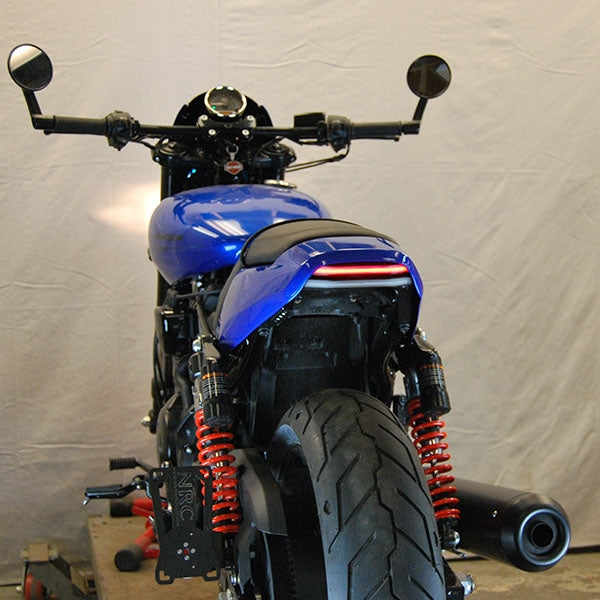

Harley Davidson Street Rod Tail Light (2017 - Present)
Take your Harley Davidson Street Rod to the next level with our DIY tail light. NRC kit comes with a complete LED tail light with the option to add our side mount license plate to it. This very popularåÊHD model required a design with a creative twist to it. Why not add to the styling with our unique and creative design?
Comes with all necessary hardware to install, and OEM connectors to make for a simple bolt-on / plug-in fender eliminator.
(2017 - Present)
