Honda CBR 1000RR Front Signals (2017 - Present) Instructions
Honda CBR 1000RR Front Signals (2017 - Present) Installation Instructions
1) Remove (2) fairing screws on each side with a 3mm allen key to remove the stock windshield. (Picture 1)
2) Unplug OEM connectors if you will be removing the stock mirrors. (Picture 2)
3) Remove (2) fairing screws with a 3mm allen key on each side to mount new turn signals. (Picture 3)
4) Slide new turn signal bracket through fairing and reuse screws removed in prior step. (Picture 4)
5) Run wires to plugs behind windshield and splice in. The green wire / connector is the ground, and the brown wire / connector is positive.
If removing the stock mirrors and installing block off plates:
1) Remove (2) acorn nuts behind mirrors on each side. (Picture 5)
2) Take NRC block off plates, supplied M6 bolts, spacers and nuts and mount onto the bike. (Picture 6)
Shop The Part
New Rage Cycles

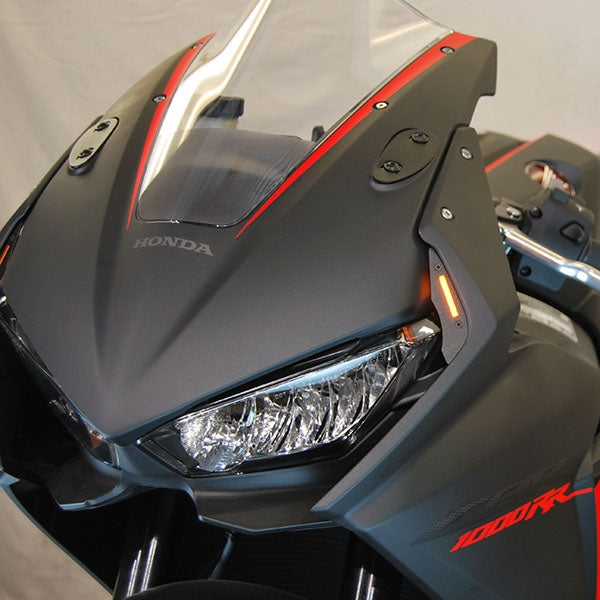

Honda CBR 1000RR Block Off Plates (2017 - Present)
