KTM 1290 Super Duke Fender Eliminator (2014-2019) Instructions
KTM 1290 Super Duke Fender Eliminator (2014-2019) Instructions
1.) Remove seat and unplug 4 wire white connector (picture 1)
2.) Remove (4) T30 torx bolts and slide fender off (picture 2)
3.) To remove wiring harness, disassemble fender by removing all (12) screws (picture 3)
4.) Unplug (3) white connectors and plug back into 4 pin connector under seat (picture 4)
5.) Remove (2) T27 torx bolts underneath bike
6.) Take NRC kit, slide connectors through hole below stock tail light, insert two tabs into lower slots and use stock T30 torx blots to tighten (picture 5/6)
7.) Take 2 black spacers and M5x45 bolts and mount into lower holes underneath bike (picture 7)
8.) Plug connectors into harness underneath seat and test lights (picture 8)
9.) Zip tie if necessary and put tool bag and seat back on bike.
Shop The Part
New Rage Cycles

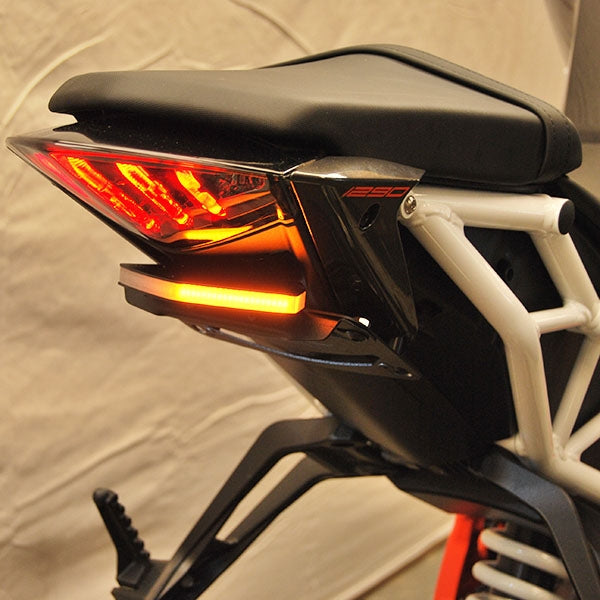

KTM 1290 Super Duke Fender Eliminator (2014-2019)
Plug-and-play fender eliminator for KTM SuperDuke 1290 riders is now available from New Rage Cycles.
- Brightest LED turn signals in the market
- Completely Plug & Play
- Tucked license plate location
- Black textured finish for professional look
- Proper flash speed; no additional modules required
**Note some KTM models throw a code on the dash. We have not yet had a model in the shop that replicates this, so we do not currently have a solution. As soon as we can take a bike in that has this code, we will find a resistor that resolves this.**
