KTM 790/890 Duke Front Turn Signals (2018-Present) Instructions
KTM 790/890 Duke Front Turn Signals Installation Instructions
1) Remove T25 torx bolt and tilt headlight down. (Picture 1)
2) Unplug connector behind headlight, and remove (1) T30 torx bolt up top, and (2) T20 torx bolts below. (Picture 2)
3) Remove cover and unplug white turn signal connectors.
4) Remove (1) T30 torx bolt on each side to get to the mounting hardware underneath. (Picture 3)
5) Remove nut with a 12mm wrench and take off stock blinker. (Picture 4)
6) Remove top plate on new turn signal, and install lower bracket and lens onto the bike with provided M5x12 bolt and M5 nut. (Pictures 5/6)
7) Screw top bracket onto turn signal.
8) Plug in connectors and test.
9) Reinstall turn signals cover, headlight shield, and plug headlight back in.
Shop The Part
New Rage Cycles

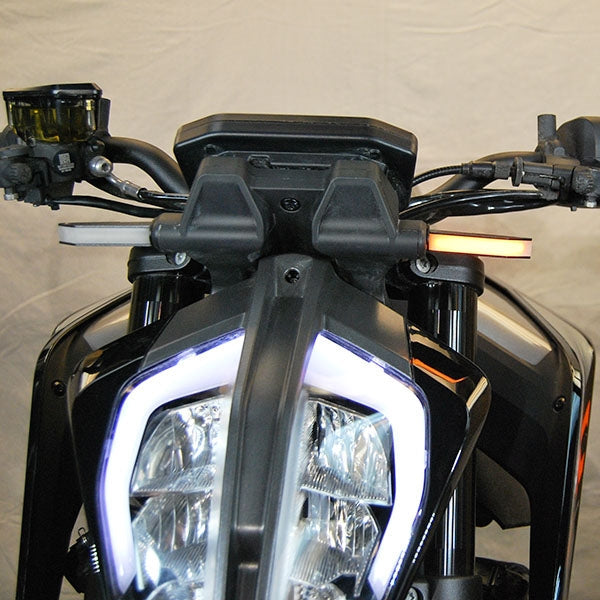

KTM 790/890 Duke Front Turn Signals (2018 - Present)
Plug-and-play LED front turn signals for KTM 790/890 Duke riders is now available from New Rage Cycles.
- Brightest LED turn signals in the market
- Completely Plug & Play
- Black textured finish for professional look
- Some 790 and 890 models do get a code on the dash that we are still actively working on resolving.
790 (2018 - Present)
890 (2020 - Present)
