Suzuki GSXR600/750 Tail Tidy (2011-Present) Instructions

Suzuki GSXR600/750 Tail Tidy (2011-Present) Installation Instructions

1) Pop both side panels off (picture 1)

2) Remove seat bolts with 5mm allen key or socket (picture 2)

3) Remove phillips head screw and (4) push pins to remove side panel (pictures 3/4/5)

4) Find white plate light connector and unplug (picture 6)

5) With a 10mm socket, unbolt (4) bolts and remove stock fender (picture 7)

If installing standard mount:

1) With provided 1/4” spacers and M6x25 bolts, thread into lower holes but leave loose (pictures 8/9)

2) Take remaining (4) spacers and (2) bolts and thread into upper holes using 2 spacers below the bracket and 2 above (picture 10)

3) Run plate light wire through hole on tail tidy and up underneath seat and plug into OEM connector (picture 11)

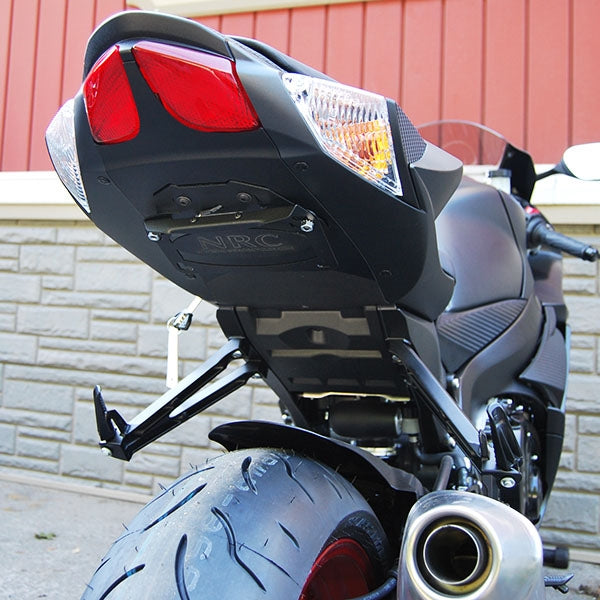

If installing tucked mount:

1) With provided 1/4” spacers and M6x25 bolts thread into lower holes but leave loose (pictures 8/9)

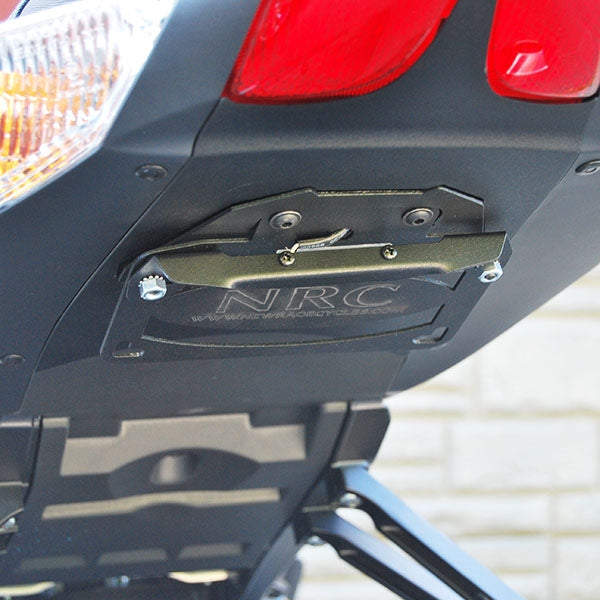

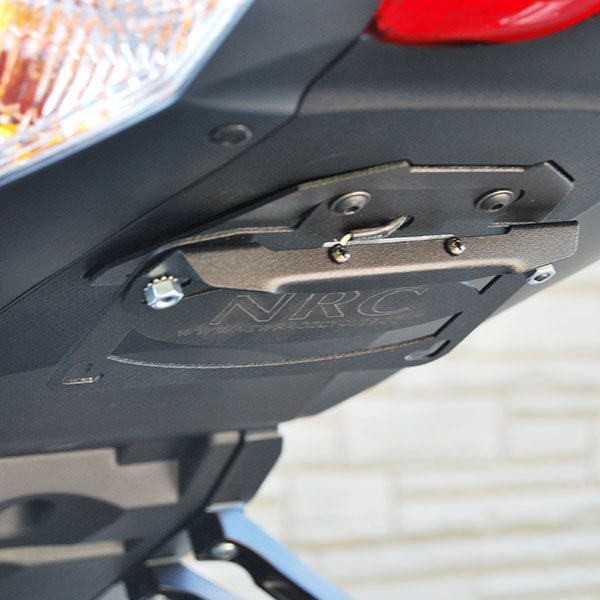

2) Take remaining (2) spacers and (2) bolts and thread into upper holes sandwiching license plate bracket and tail tidy bracket (picture 12)

3) Tighten all (4) bolts

4) Turn key on and test light

5) Reinstall side pods and seat
