Triumph Scrambler Fender Eliminator Kit (06-16) Instructions
Triumph Scrambler Fender Eliminator Kit (06-16) Installation Instructions
1) Remove seat from bike via 2 allen bolts (picture 1)
2) Unplug stock wiring harness (picture 2)
3) Loosen 4 bolts to remove stock fender (picture 3 / 4)
4) Using stock hardware, bolt in supplied splash shield (picture 5)
5) Bolt in NRC license plate bracket (picture 6)
If using grab handle:
• With seat in hand, use stock hardware and supplied nuts to bolt into 2 top holes on bracket (picture 7)
• Fit seat onto bike, and with supplied hardware, bolt into 2 lower holes on bracket (picture 8)
• Plug new wiring harness into stock connector
If removing grab handle:
• Fit seat onto bike, use stock hardware and bolt into top 2 holes on bracket
• Plug new wiring harness into stock connector
• Using supplied rubber bumpers, install into 2 back rubber grommets on bike
Shop The Part
New Rage Cycles
Triumph Scrambler Fender Eliminator Kit (2006-2016)
NRC hits the market with a custom designed fender eliminator kit for your Triumph Scrambler. Our kit cleans up the back of your Scrambler with the brightest signals and brake light on the market!
Whether you want to retain the grab handle or not, our kit accommodates either or. This design follows the contour of the seat and lights up ALL the way around providing an incredible signal replacement. This kit also provides a belly pan to protect your seat underneath the bike.

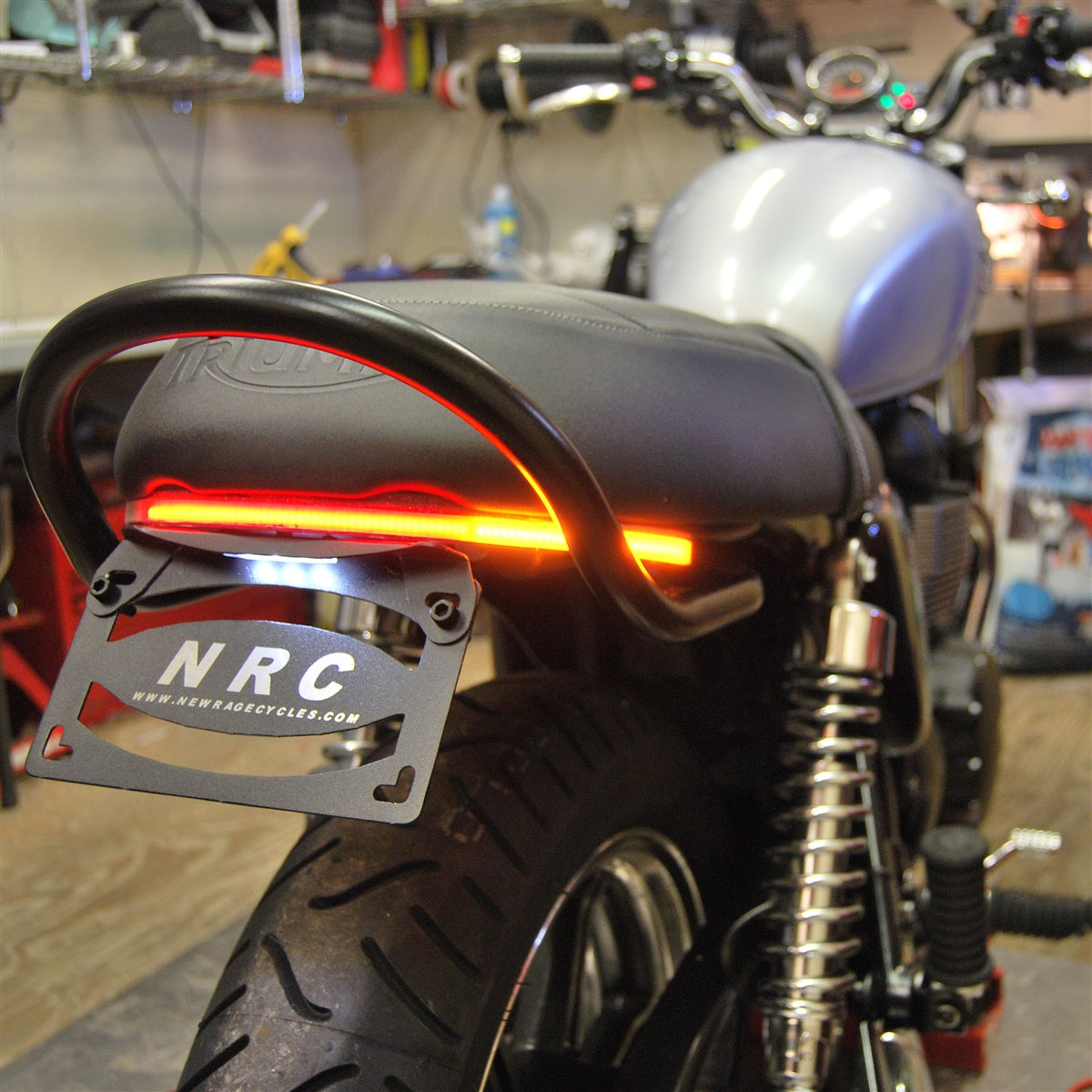

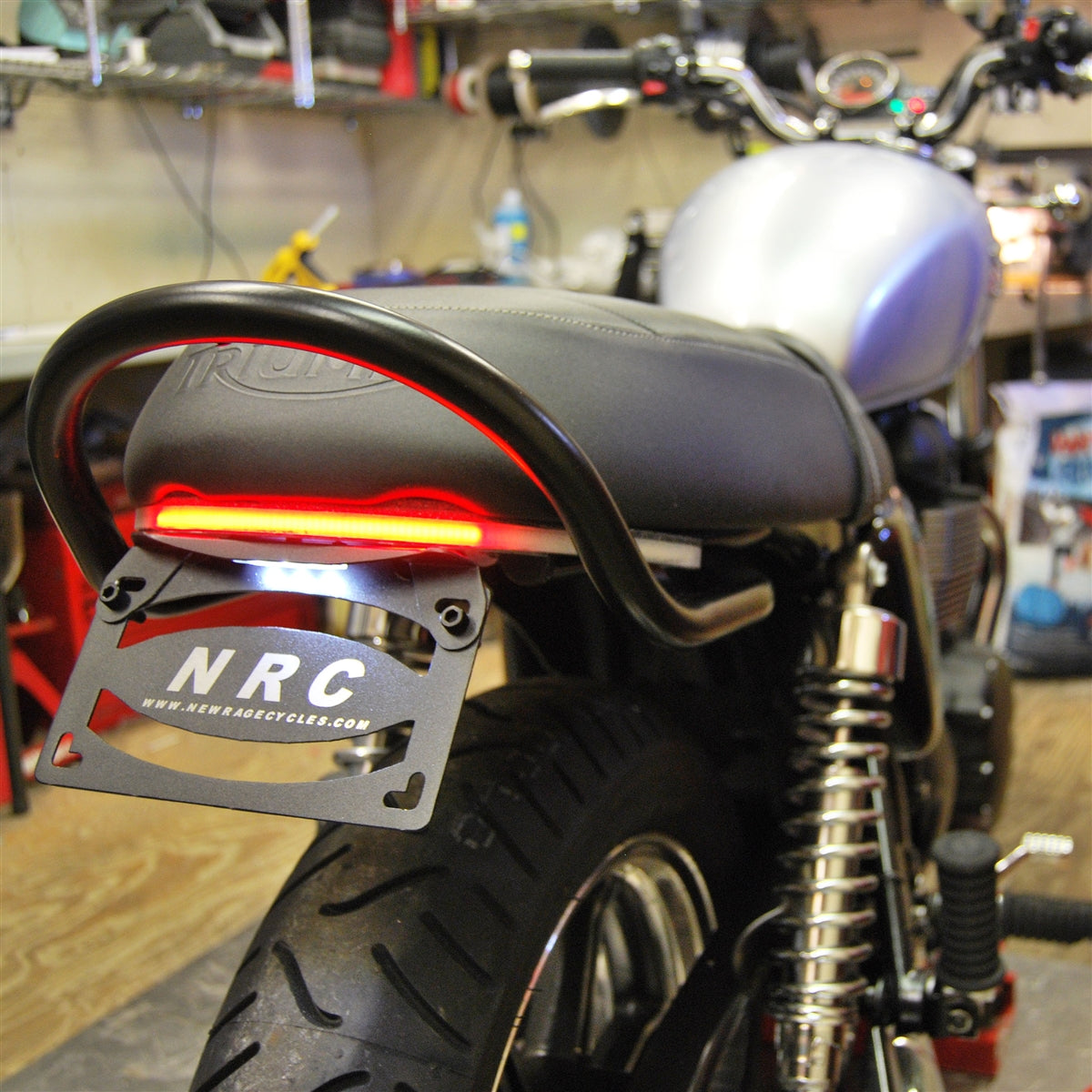

Our license plate bracket is constructed from aluminum, black powder coated, and tucks up underneath your Scrambler, providing a very clean finish, as well as giving you extremely bright LED signals! Turn signal lenses are CNC machined from polycarbonate and our turn signal bracket is machined from aluminum. We use extremely bright 1mm LEDs, giving you incredible and custom turn signals... Day or Night!
A load equalizer is an optional module that will slow the flash rate. As is, it will flash a little faster than stock.
