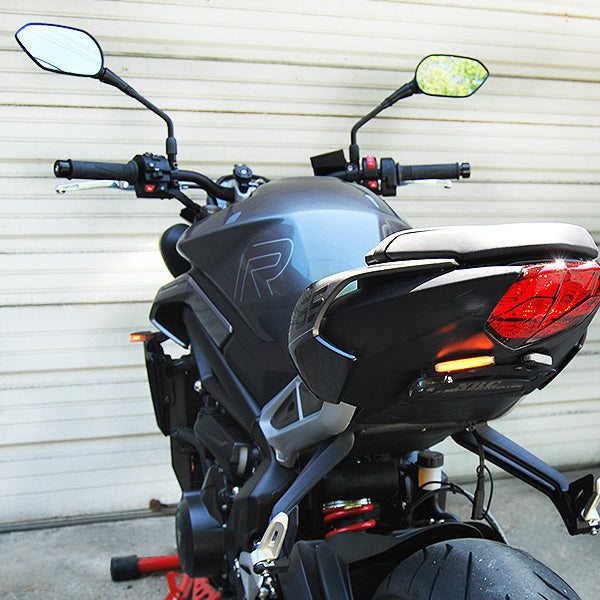

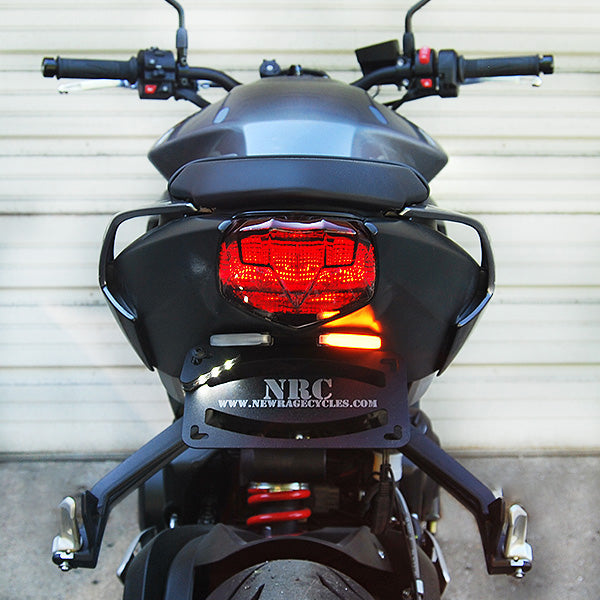

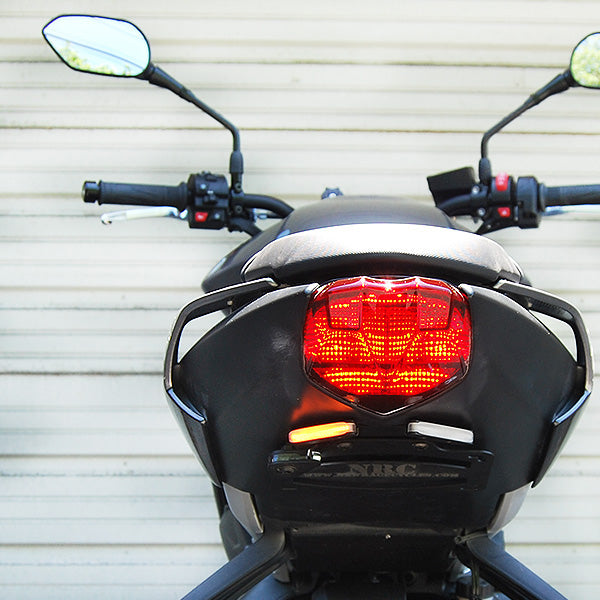

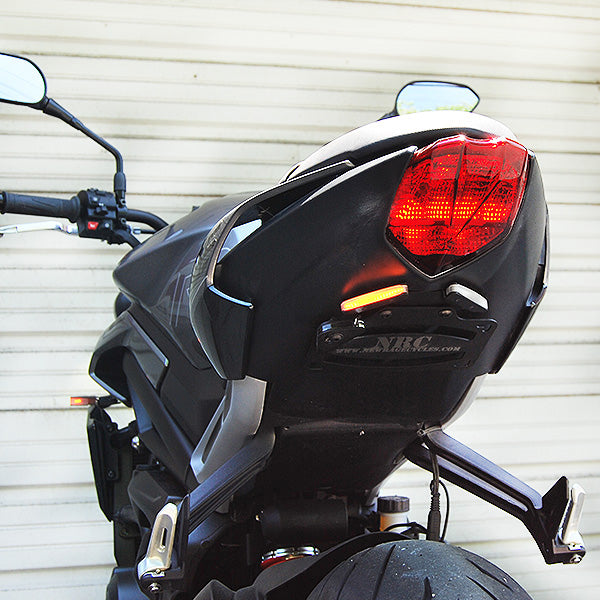

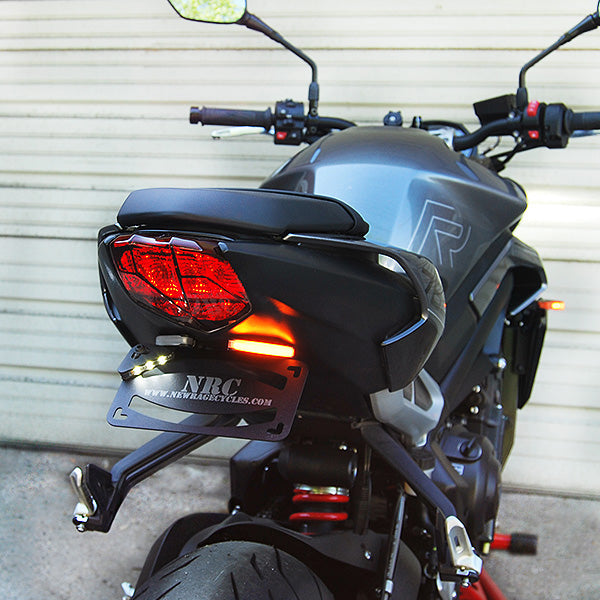

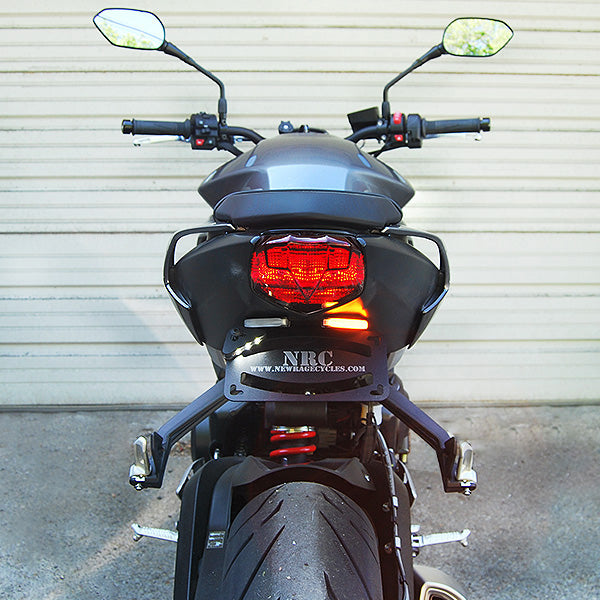

Triumph Street Triple Fender Eliminator Installation Instructions

1) Underneath seat, unplug stock connector (picture 1)

2) With an 8mm socket, remove (4) bolts (picture 2)

3) Remove stock fender

4) Disassemble stock fender to expose wiring and unplug connectors for turn signals and plate light (picture 3)

5) Remove (4) bolts with 8mm socket and 4mm allen key or socket to remove plastic panel (picture 4)

6) To remove tail light, unbolt (2) 8mm bolts and unplug connector (picture 5)

7) On tail light, remove (2) 4mm bolts (picture 6)

8) Slide new tail light into plastic cavity, and install 4mm bolts (picture 7)

9) Remove 4mm allen bolt to loosen plastic panel so module will fit (picture 8)

10) Reinstall (3) tail light bolts with 8mm socket and 4mm allen (picture 9)

11) Reinstall (4) bolts for plastic panel over top of brake light with 8mm socket and 4mm allen (picture 10)

12) Wire in module using supplied wiring diagram. Shrink tube connections when complete.

13) With supplied M6x10 and tooth washers, bolt license plate to diamond plate (picture 11)

14) With 1/2” white spacers, use M5 bolts and nuts to bolt on diamond plate (picture 12)

15) Reuse the 2 factory spacers and slide them onto the 2 holes for the supplied M5 bolts to go through (picture 13)

16) Mount license plate

17) Put seat back on
