Triumph Street Twin Fender Eliminator Instructions
Triumph Street Twin Fender Eliminator Installation Instructions
1) Remove seat from bike
2) Remove four stock bolts holding stock fender (picture 1)
3) Unplug stock connector attached to ECU (picture 2)
4) With new belly pan, bolt on using supplied M6 bolts and nuts leaving loose on front holes (picture 3)
5) With new license plate bracket, bolt to belly pan with supplied M6 bolts and nuts (picture 4)
6) Take new tail light, and sandwich in between belly pan and license plate bracket and bolt onto bike using stock bolts and supplied nuts (picture 5/6)
7) Plug new tail light back into stock connector
8) Tighten all bolts previously left loose
9) Put seat back on
Shop The Part
New Rage Cycles

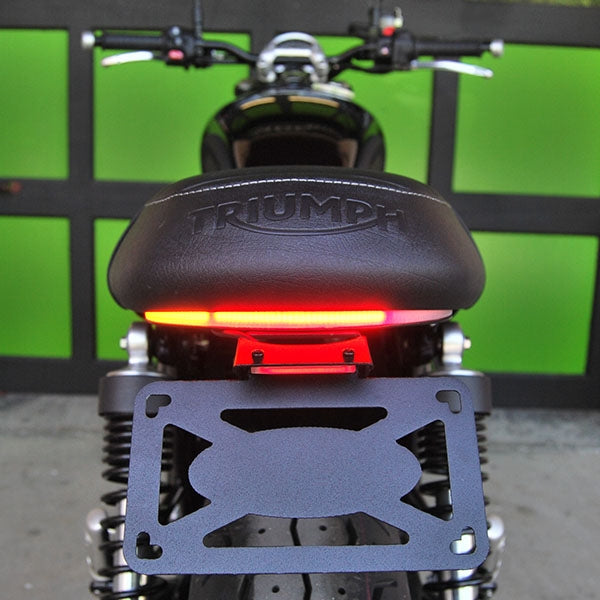

Triumph Street Twin Fender Eliminator Kit (2016 - Present)
NRC hits the market with a plug and play fender eliminator kit for your Triumph Street Twin. Our kit cleans up the back of your Street Twin with the brightest signals and brake light on the market! Our design follows the contour of the seat and lights up ALL the way around providing an incredible signal replacement. This kit also provides a belly pan to protect your seat underneath the bike.
Our license plate bracket is constructed from aluminum, black powder coated, and tucks up underneath your Street Twin, providing a very clean finish, as well as giving you extremely bright LED signals! Accommodates both US and EU license plates.
Our plug & play kit saves you time and money on installation, and lets you plug right in and ride on!
A load equalizer is an optional module that will slow the flash rate. As is, it will flash a little faster than stock.
(2016 - Present)
