Yamaha R3 Front Turn Signals Installation Instructions

1) Remove inner fairing shield screws on both sides of the bike. (Picture 1)

2) Remove left and right upper fairing covers. (Picture 2 and 3)

3) Unplug OEM connectors and remove retaining clip to slide off stock turn signals. (Picture 4 and 5)

4) Take new signals, and remove long screw from the back of the lens to separate the little plastic block. (Picture 6)

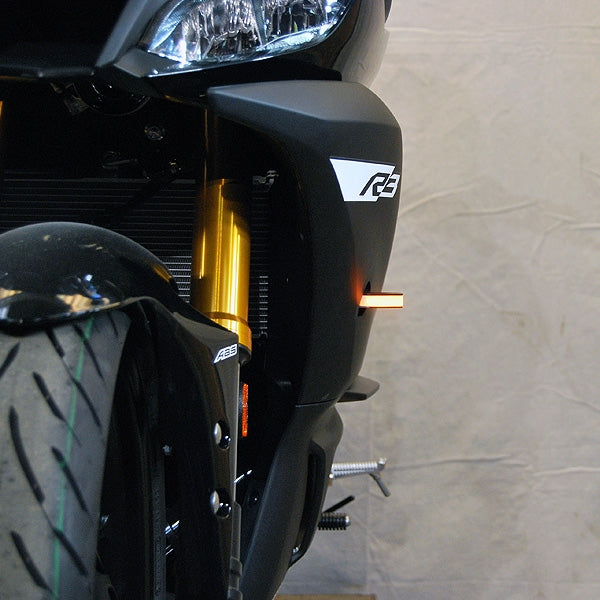

5) Slide blinker into fairing cavity and use the little block and screw to mount to the bike. (Picture 7 and 8)
