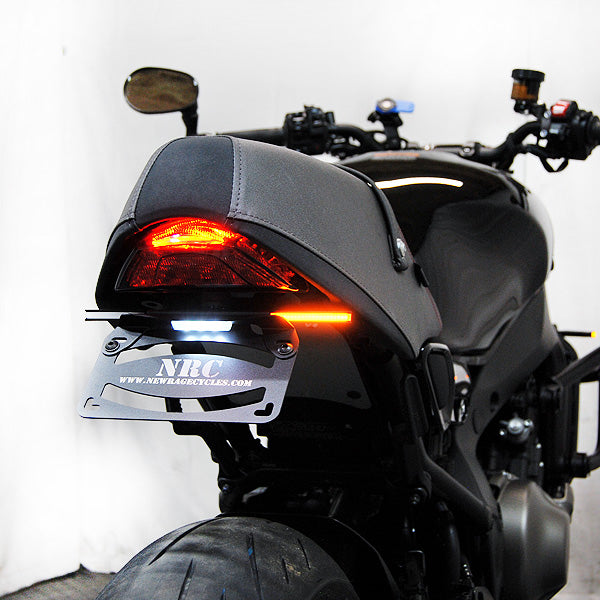

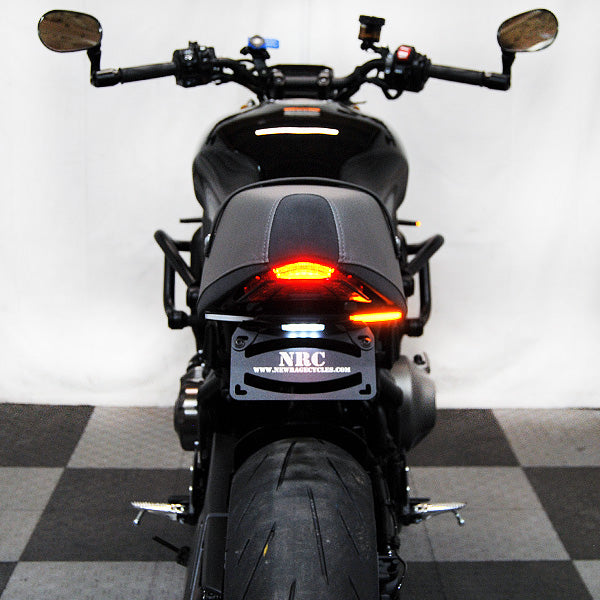

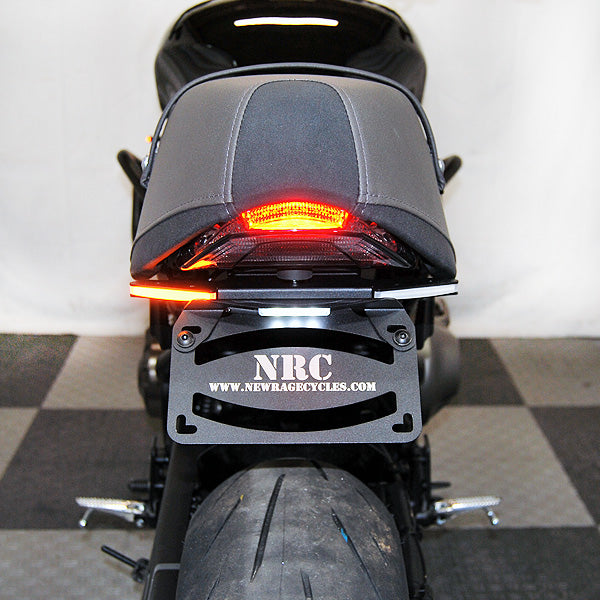

Yamaha XSR 900 Fender Eliminator Installation Instructions

1) Remove the stock seat

2) Remove four 8mm hex bolts (picture 1)

3) Disconnect 4 plugs (picture 2)

4) Remove four 10mm acorn nuts, and slide off stalk (picture 3)

5) Mount NRC license plate bracket to turn signal bracket with supplied M6 nuts/bolts (picture 4)

6) Slide four M5 bolts through plate and provided spacers to mount onto the bike with M5 nuts (picture 5/6)

7) Plug new connectors into stock harness

8) Mount license plate to NRC license plate bracket

9) With rubber cap, slide over seat lock (picture 7)

10) Put seat back onto the bike and ride safe

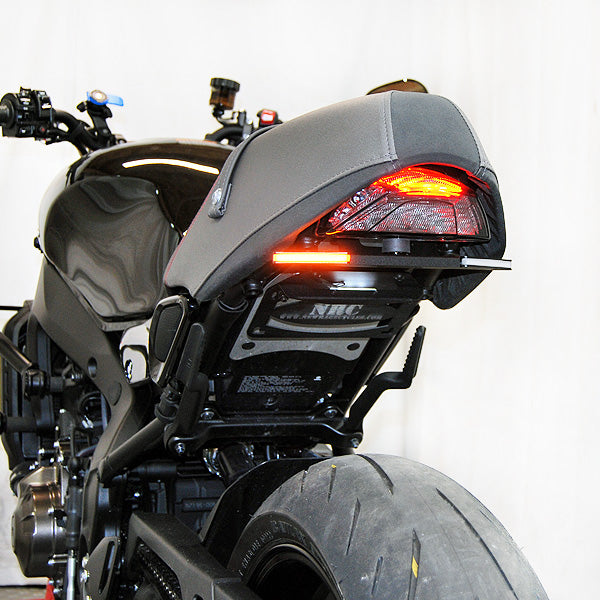

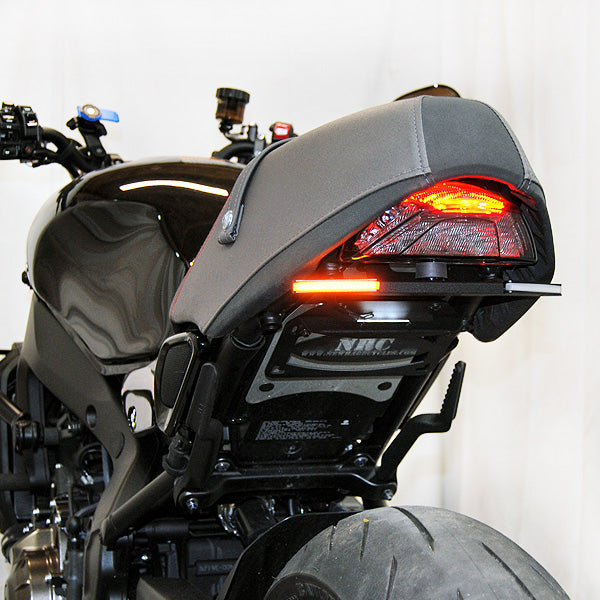

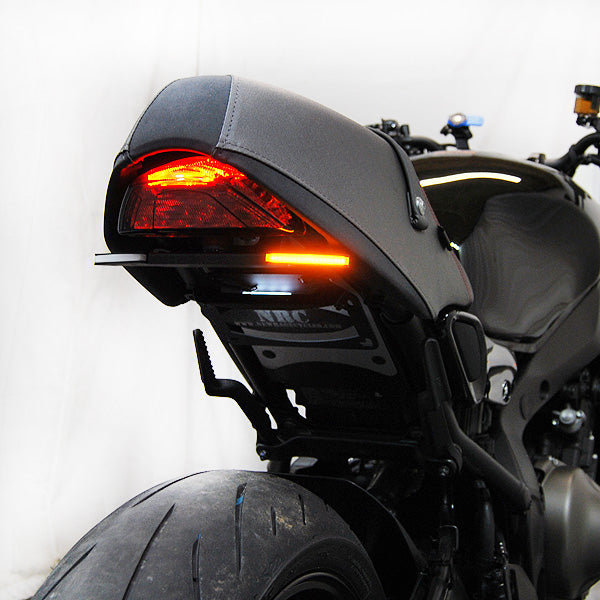

If mounting ‘Tucked’ plate position…

1) Remove the stock seat

2) Remove four 8mm hex bolts (picture 1)

3) Disconnect 4 plugs (picture 2)

4) Remove four 10mm acorn nuts, and slide off stalk (picture 3)

5) Mount tucked plate bracket to turn signal bracket with supplied M5 bolts/nuts (picture 8)

6) Slide other two M5 bolts through plate and provided spacers to mount onto the bike with M5 nuts (picture 5/6)

7) Plug new connectors into stock harness

8) Mount license plate to tucked plate bracket

9) With rubber cap, slide over seat lock (picture 7)

10) Put seat back onto the bike and ride safe
